Actiflex II Quad Static Monitor Arm Mount

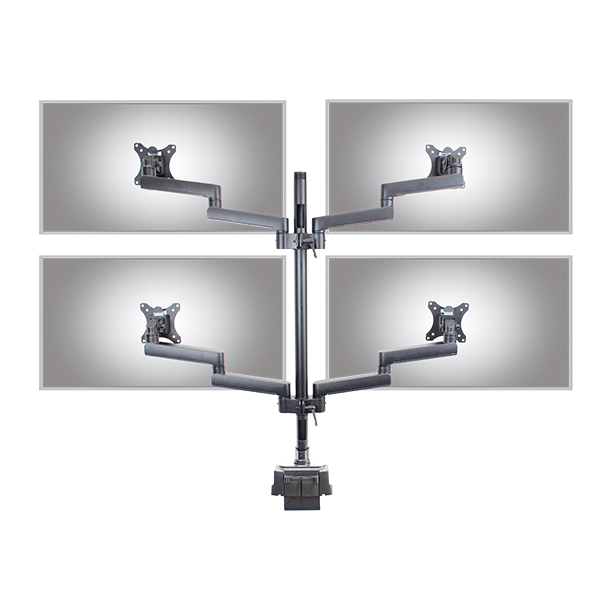

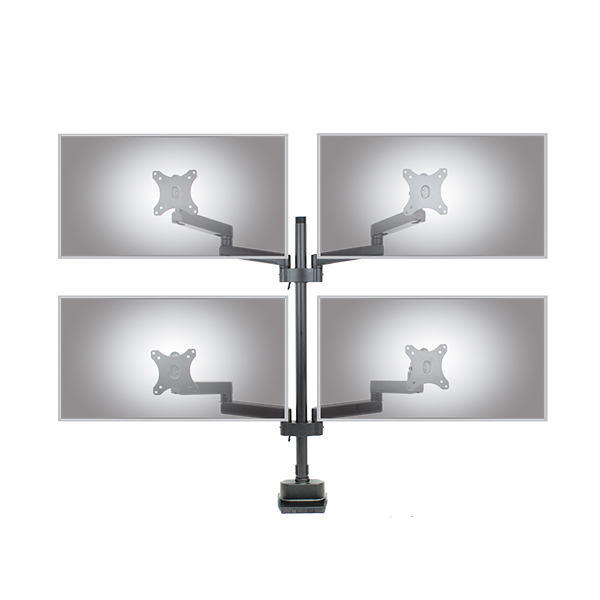

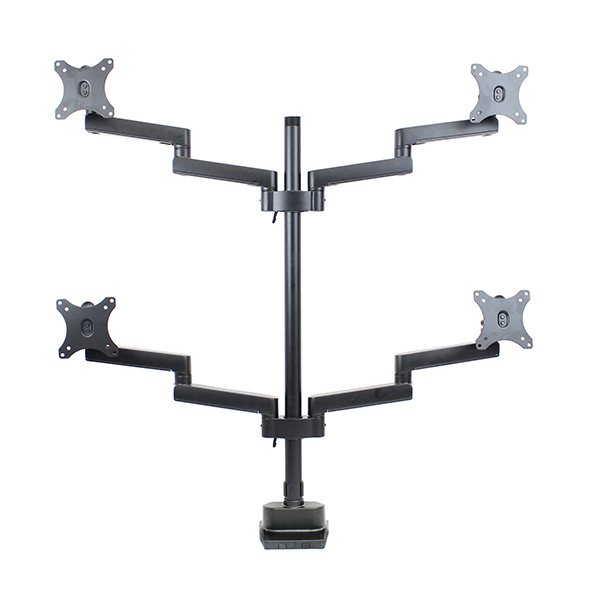

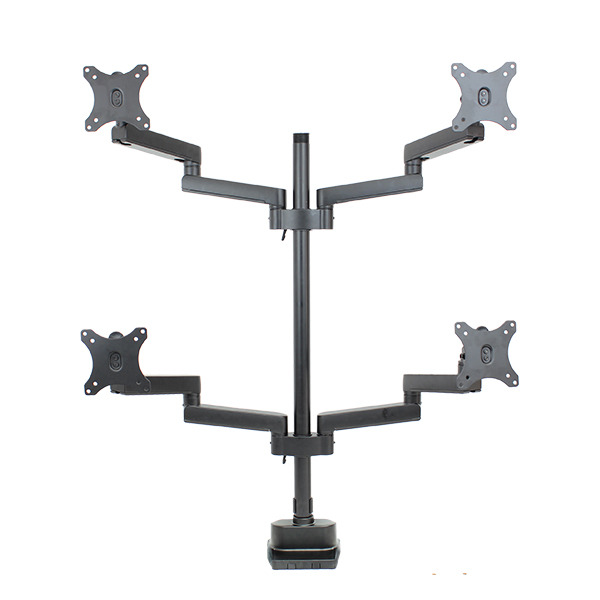

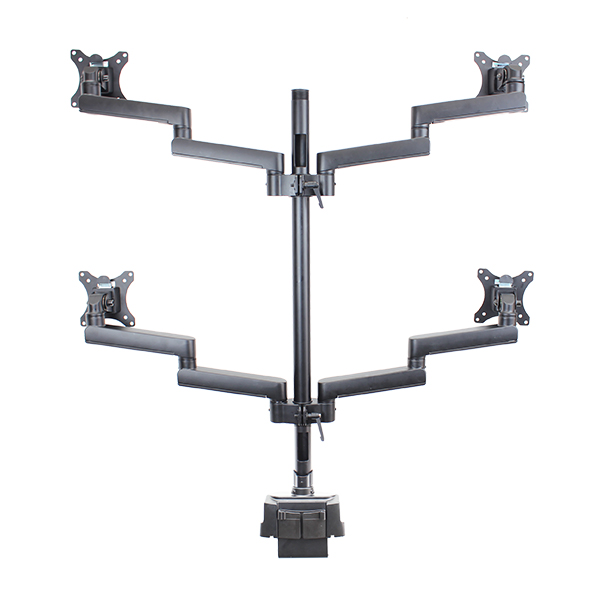

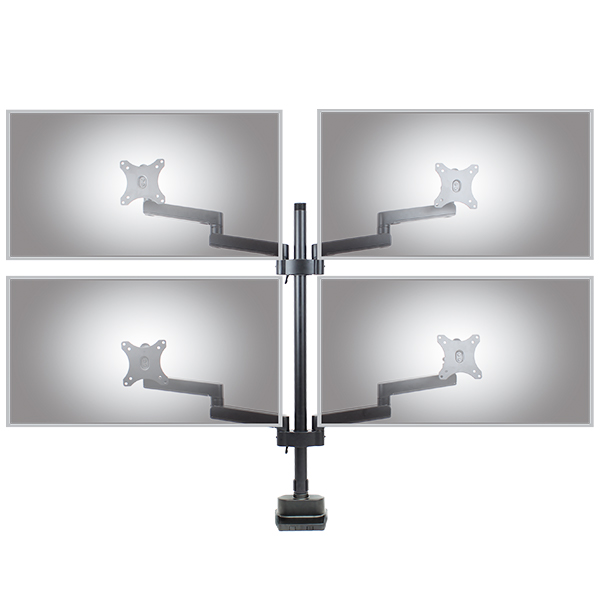

As the name implies, the Actiflex II Quad Static Monitor Arm Mount supports four monitors on the desktop. Being part of the Actiflex II range, this is a modular system, allowing different components to be added or exchanged, to arrive at a configuration of your choice.

The heavy duty mount housing can either be clamped to the desktop edge, or alternatively, through-mounted by drilling a 10 mm hole in the desktop. Hardware is included for both mounting options. Care should be taken to ensure the desktop has sufficient integral strength to support the configuration weight, typically a minimum of 20 kg when monitors are attached.

The monitors are able to be positioned at different heights on the 800 mm high Actiflex pole, according to user preferences.? All monitors can be tilted up to 180 degrees, and the screens can be pivoted from landscape to portrait. Integrated cable management clips keeps the work surface free from cable clutter.

The Actiflex II quad static monitor arms hold a weight range of up to 8 kg for each monitor.

Features:

• Fingertip adjustment of depth
• Flexible positioning of connectors and arm segments on the 800 mm height pole
• Desk-clamp or through-mount included
• Easy above desk installation
• Fully adjustable: 360 degrees rotate, 180 degrees tilt and swivel
• 800 mm pole feature slots for internal cable management
• 75mm/100mm VESA mounting pattern compatible
• Quick release VESA brackets for easy monitor mounting

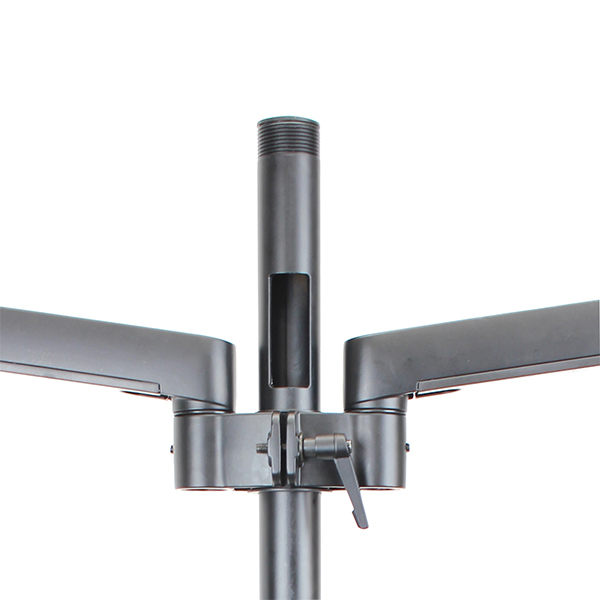

• Integrated cable management
• Supports up to 8kg per monitor
• Suitable for most LCD/LED monitors up to 27″ (subject to final dimension check)
• Additional parts available for custom configurations
• Black colour only.

Who buys this:

The Actiflex II quad static monitor arms provide excellent multi-screen adjustability at an economical price. Ideal for day traders, gamers, software developers, security monitoring, or any mid-tier corporation looking to implement multi-screen viewing at the desktop. The large range of adjustment and easy set-up make Actiflex II Quad particularly suitable for multi screen viewers who work from home.
